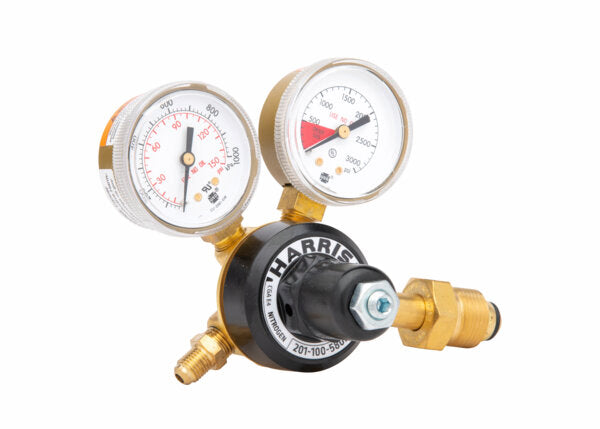

Harris Model 201 Brass N2 Beverage Regulator (201-100P-580i)
3001995
Model 201 is a nitrogen beverage regulator that is preset to deliver to 100 PSI. It has a 1/4" turn ball valve and...
Model 201 is a nitrogen beverage regulator that is preset to deliver to 100 PSI. It has a 1/4" turn ball valve and hose barb.
Features
- A brass body and zinc bonnet make it corrosion resistant
- Nylon reinforced neoprene diaphragm
- Integral self-reseating relief valve (175 PSI) to protect critical components
- Encapsulated seat for safety and longer service life
- High flow rate for a wide variety of applications
- Conforms to CGA E-4 standard for gas pressure regulation.
General Equipment
| Adjusting Screw | Clear zinc-plated steel |
| Body | Brass |
| Bonnet | Black painted zinc |
| Certification | CGA E-4 |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 150 |
| Delivery Pressure Gauge (SCFH) | Up to 100 |
| Delivery Pressure Range (PSIG) | Up to 100 |
| Diaphragm | Neoprene |
| Equipped With | Integral self-reseating relief valve (175 psi) |
| Gas / Gas Service | Carbon Dioxide |
| Gauges | 2" Gold painted steel dual scale (psi/kPa) |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Seat | PTFE Teflon® |
Gas Distribution
| Outlet Fittings | 1/4" Flare with check valve |
Gas Regulation
| Outlet Connection | CGA 580 |
| Seat Return Spring | PH 17-7 Stainless steel |
Read More
